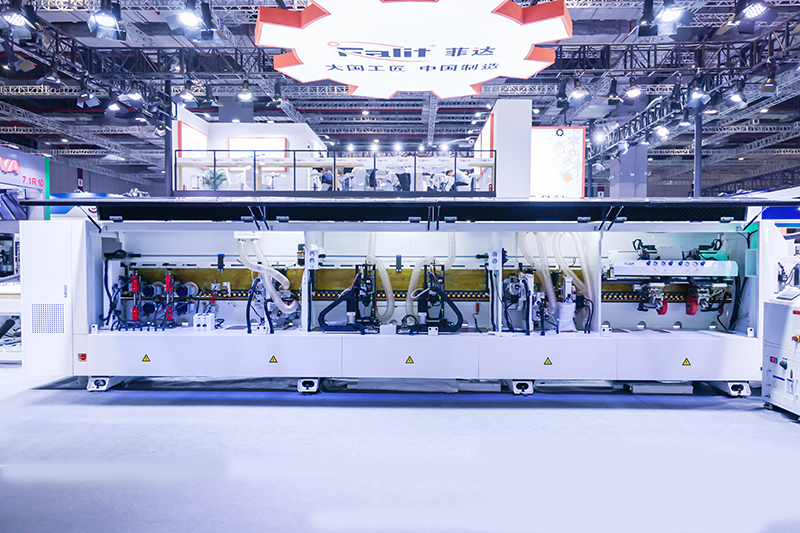

Introduction to Edge Banding Machines in Woodworking

In the world of woodworking, achieving a professional finish on projects often comes down to the details. One crucial aspect of this is edge banding, a process that transforms raw, exposed edges of wood boards into smooth, finished surfaces. At the heart of this process lies the edge banding machine, a tool that has revolutionized the way woodworkers approach their craft. This article will delve deep into the world of edge banding machines, exploring the tools and techniques that make them an indispensable part of modern woodworking.Edge banding machines are designed to apply a thin strip of material, typically made of wood veneer or PVC, to the edges of wood boards or panels

. This process not only enhances the aesthetic appeal of the finished product but also protects the edges from damage and moisture. As we explore the tools used in these machines, we'll uncover how they contribute to creating high-quality, durable woodworking projects with minimal effort and maximum efficiency.

The Core Components of an Edge Banding Machine

At its core, an edge banding machine consists of several key components that work in harmony to achieve a seamless edge finish. Let's break down these essential parts:

1. Glue pot: This is where the magic begins.  The glue pot holds and heats the adhesive used to bond the edge banding material to the wood board. It's crucial for maintaining the right temperature and consistency of the glue for optimal bonding.

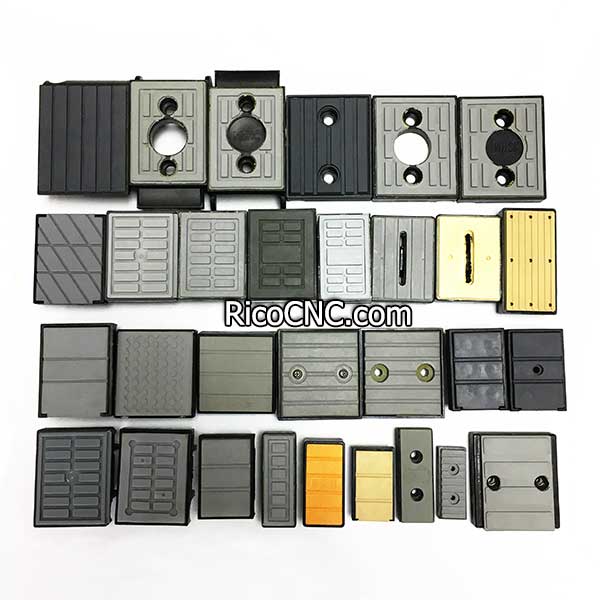

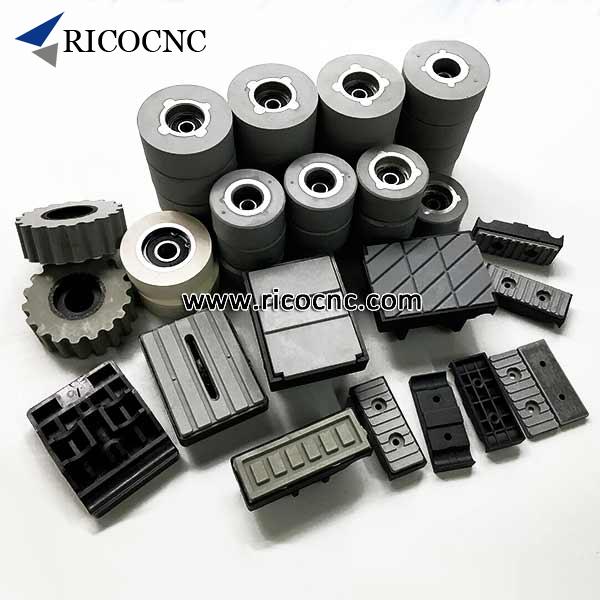

2. Feed System: This component is responsible for guiding the wood panel through the machine at a consistent speed. It typically includes rollers or that ensure smooth and precise movement of the workpiece.

3. Trimming Units: After the edge banding is applied, trimming units come into play. These tools, often featuring high-speed cutters, trim excess material from the top and bottom of the applied edge band, ensuring a flush finish.




4. End Trimmer: As the name suggests, this tool trims the excess edge banding material from the ends of the panel. It's essential for achieving clean,precise corners.

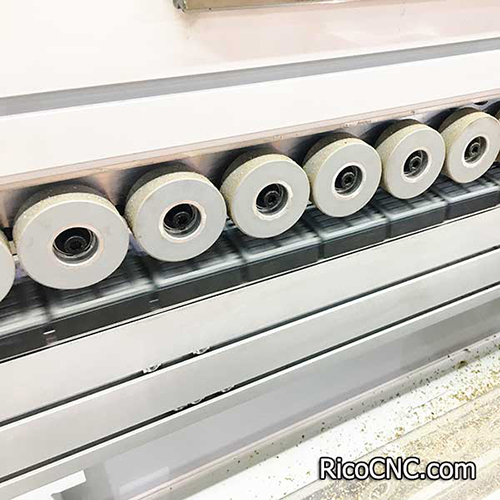

5. Pressure Rollers: These apply consistent pressure to the newly applied edge band, ensuring a strong bond between the banding material and the wood panel.




Specialized Tools for Precision Edge Banding

Beyond the core components, edge banding machines often incorporate specialized tools to enhance precision and efficiency:

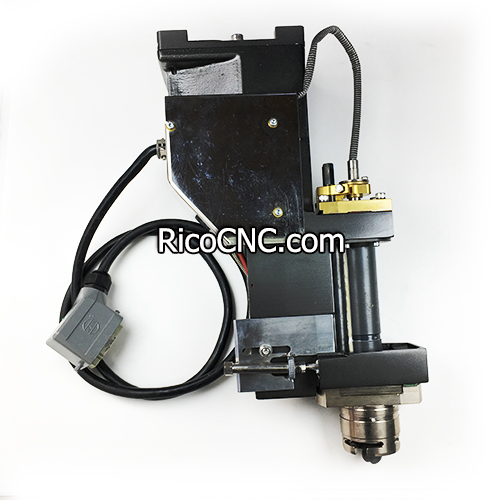

1. Corner Rounding Unit: This tool rounds off sharp corners on the edge banded panel, providing a smooth, professional finish and reducing the risk of chipping or damage.

2. Scraping Units: These tools remove any excess glue or imperfections left after trimming, resulting in a clean, smooth edge.

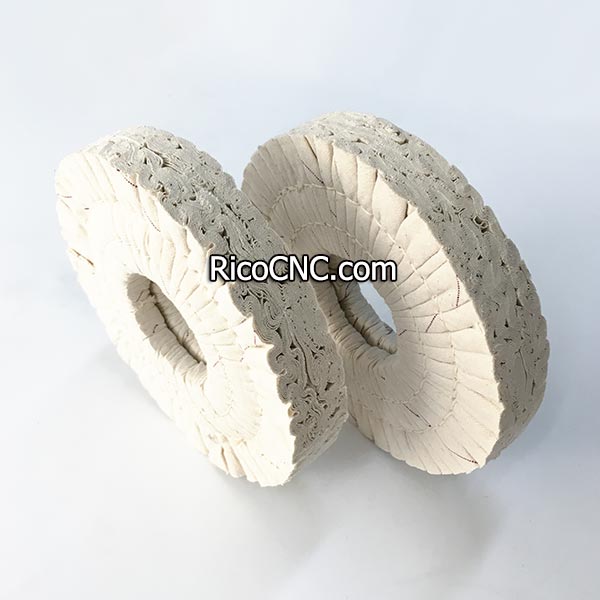

3. Buffing Unit: The final touch in many edge banding processes, the buffing unit polishes the newly applied edge band to a smooth, glossy finish.

4. PUR Glue System: Some advanced machines feature a Polyurethane Reactive (PUR) glue system, which offers superior bonding strength and moisture resistance compared to traditional hot melt adhesives.




High-Precision Cutting Tools

The quality of the edge banding process heavily relies on the precision of the cutting tools employed. Here are some key cutting tools used in edge banding machines:

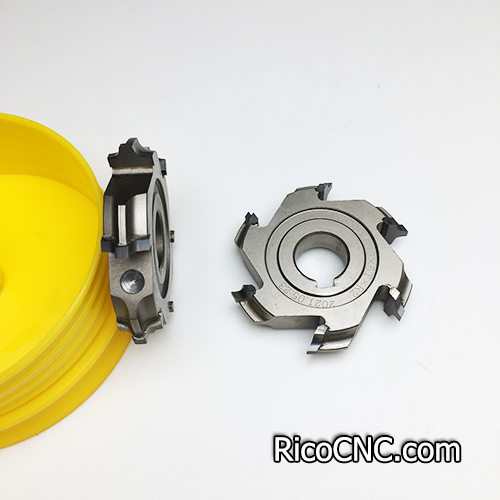

1. Carbide-Tipped Cutters: These durable cutters are designed for long-lasting performance and can handle a variety of edge banding materials.

2. Diamond-Tipped Cutters: For the ultimate in precision and longevity, diamond-tipped cutters offer unparalleled sharpness and wear resistance.

3. Adjustable Cutting Heads: These allow for fine-tuning of the trimming process, accommodating different thicknesses of edge banding material.

Automation and Control Systems

Modern edge banding machines often incorporate advanced automation and control systems to enhance efficiency and precision:

1. Programmable Logic Controllers (PLCs): These computerized control systems allow for precise adjustment of machine parameters, ensuring consistent results across large production runs.

2. Touch Screen Interfaces: User-friendly touch screens provide easy access to machine settings and real-time monitoring of the edge banding process.

3. Automatic Edge Feeding Systems: These systems automatically feed the edge banding material into the machine, reducing manual labor and increasing productivity.

Tools for Material Handling and Preparation

Efficient edge banding also relies on proper material handling and preparation. Here are some tools that support this aspect:

1. Panel Lifters: These devices assist in loading heavy wood panels into the edge banding machine, reducing physical strain on operators.

2. Edge Material Trimmers: Used to prepare edge banding material by trimming it to the correct width before feeding it into the machine.

3. Dust Collection Systems: Essential for maintaining a clean work environment and preventing dust from interfering with the edge banding process.

Specialized Edge Banding Tools for Curved Surfaces

While most edge banding machines are designed for straight edges, specialized tools exist for applying edge banding to curved surfaces:

1. Contour Edge Banders: These machines are specifically designed to apply edge banding to curved or shaped panels.

2. Flexible Edge Banding Material: Used in conjunction with contour edge banders, this material can conform to curved surfaces.

3. Manual Edge Banding Tools: For small-scale or highly customized work, handheld edge banding tools allow for precise application on curved or irregular surfaces.

Maintenance Tools for Edge Banding Machines

To keep an edge banding machine running smoothly, several maintenance tools are essential:

1. Cleaning Solutions: Specialized cleaners are used to remove glue residue and maintain the cleanliness of various machine components.

2. Lubricants: Regular lubrication of moving parts is crucial for the longevity and performance of the machine.

3. Replacement Parts Kit: A kit containing commonly replaced parts such as trimmer blades and pressure rollers ensures minimal downtime for maintenance.

Safety Equipment in Edge Banding Operations

Safety is paramount in any woodworking operation, and edge banding is no exception. Here are some essential safety tools:

1. Emergency Stop Buttons: Strategically placed for quick machine shutdown in case of emergencies.

2. Safety Guards: Protective covers that prevent accidental contact with moving parts or hot surfaces.

3. Personal Protective Equipment (PPE): Including safety glasses, ear protection, and dust masks for operator safety.

Advancements in Edge Banding Technology

The world of edge banding is constantly evolving, with new technologies emerging to improve efficiency and quality:

1. Laser Edge Banding: This cutting-edge technology uses lasers to activate a special coating on the edge banding material, creating a seamless, "zero-joint" appearance

2. IoT-Enabled Machines: Internet of Things (IoT) technology allows for remote monitoring and diagnostics of edge banding machines, improving maintenance and reducing downtime.

3. Artificial Intelligence Integration: Some advanced systems use AI to optimize machine settings based on material properties and desired outcomes.

Choosing the Right Edge Banding Machine

Selecting the appropriate edge banding machine depends on various factors:

1. Production Volume: Consider machines with higher speeds and automation for large-scale production.

2. Material Variety: Ensure the machine can handle the types of edge banding materials you plan to use.

3. Space Constraints: Compact machines are available for smaller workshops, while larger industrial units offer higher capacity.

4. Budget Considerations: Balance the initial investment with long-term productivity gains and maintenance costs.

The Role of Operator Skills in Edge Banding

While machines do much of the work, skilled operators are crucial for achieving optimal results:

1. Machine Setup: Proper configuration of the edge banding machine is essential for quality output.

2. Material Selection: Choosing the right edge banding material for each project impacts the final result.

3. Quality Control: Operators must be vigilant in monitoring the edge banding process and making adjustments as needed.

Environmental Considerations in Edge Banding

As sustainability becomes increasingly important, edge banding machines are evolving to meet environmental standards:

1. Energy-Efficient Models: Modern machines are designed to minimize energy consumption without sacrificing performance.

2. Eco-Friendly Materials: Some edge banding materials are now made from recycled or sustainable sources.

3. Waste Reduction Systems: Advanced machines incorporate features to minimize material waste during the edge banding process.

Troubleshooting Common Edge Banding Issues

Even with the best tools, issues can arise in edge banding. Here are some common problems and the tools used to address them:

1. Edge Peeling: Often resolved by adjusting glue temperature or pressure settings.

2. Uneven Trimming: May require recalibration of trimming units or replacement of worn cutter heads.

3. Glue Residue: Addressed using specialized cleaning tools and solutions.

The Future of Edge Banding Technology

As we look to the future, several trends are shaping the evolution of edge banding machines:

1. Increased Automation: Further reduction of manual intervention in the edge banding process.

2. Enhanced Customization: Machines capable of handling a wider variety of materials and edge profiles.

3. Integration with Digital Design: Direct communication between design software and edge banding machines for seamless production.
