What Kind of Linear Guides Are Best for X Y Z Axis?

1. Understanding Linear Guides

Linear guides, also known as linear bearings or linear rails, are key components that provide smooth and precise movement for CNC machinery. They are fundamental to how motion control systems operate and are especially crucial in woodworking, where accuracy is paramount. The guides used for the X, Y, and Z axes differ based on factors like load, speed, and desired precision.

Linear guides come in various types, including ball bearings, roller bearings, and rail types. Each has its strengths, depending on the kind of application and the type of force the guide must handle. In CNC woodworking, the X, Y, and Z axes each have different demands, meaning the choice of guide should be specifically tailored for each axis to optimize performance and durability.

2. Overview of Linear Motion Components

Linear motion systems consist of several key components that work together to achieve efficient and accurate positioning. Some of these components include:

• Linear Bearings: Devices designed to provide free motion in one direction.

• Rails: Tracks along which the bearings move to ensure precision.

• Ball Screws: Provide a means of converting rotary motion into linear movement with high efficiency.

These components provide the CNC system with smooth and precise operation, contributing significantly to the overall quality of the machining application. Choosing the right component, including the appropriate linear guide for each axis, is crucial for a successful CNC build.

3. The Different Types of Linear Guides

When discussing linear guides, it’s important to understand the various types available and their specific uses:

• Ball Bearing Guides: These are among the most common types. They utilize balls to reduce friction and are known for their smooth operation.

• Roller Bearing Guides: These guides use cylindrical rollers instead of balls, which allows for better load distribution.

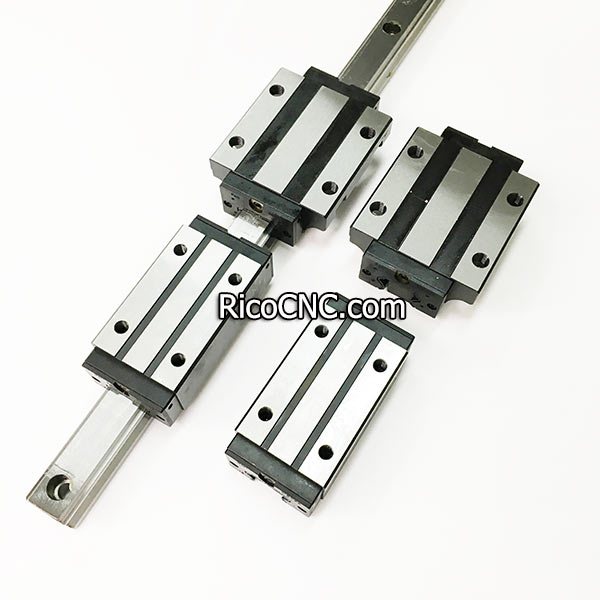

• Profile Rail Guides: These are often seen in CNC machines because they offer higher rigidity and load capacity.

For X, Y, and Z axes, different linear guide types will perform better depending on their unique requirements.

4. Selecting Linear Guides for the X Axis

The X axis on a CNC machine often handles the longest movement range, making durability and precision key factors. Profile rail guides are commonly the best option here due to their rigidity and ability to handle higher loads. Since the X axis frequently carries the weight of the Y and Z axes, plus the spindle or router, a sturdy and robust linear guide is essential.

• Durability: Due to frequent and extended motion, the linear guide on the X axis should resist wear over time.

• Load Capacity: Profile rail guides offer high load capacity, which is vital for the X axis.

Using roller guides can also be advantageous, particularly in industrial CNC woodworking applications where the X axis endures heavy forces and vibrations. The rollers provide a larger contact area, which translates into enhanced stability.

5. Selecting Linear Guides for the Y Axis

The Y axis is responsible for positioning perpendicular to the X axis, often supporting some of the cutting force and managing part of the workpiece’s movement.

For the Y axis, ball bearing linear guides are generally a suitable choice. They provide:

• Smooth Motion: Ball bearings reduce friction, which is important for the Y axis to maintain precision in lateral movement.

• High Speed: Given the need for rapid movement to follow along the X axis, ball bearing guides enable quick and efficient positioning.

While profile rails could also be used, ball bearing linear guides are favored for providing an excellent balance of speed and precision without excessive rigidity, which can sometimes be a hindrance in smaller, detailed cuts.

6. Selecting Linear Guides for the Z Axis

The Z axis plays a unique role in CNC woodworking, as it is responsible for controlling the depth of the cut. The Z axis requires a linear guide that provides high accuracy with minimal play or deflection, as even a minor error can significantly impact the quality of a cut.

• Profile Rail Guides: These are often preferred for the Z axis because they are very rigid and capable of supporting vertical loads without deflection.

• Ball Screws and Support Bearings: A well-designed ball screw mechanism, along with properly chosen support bearings, is crucial for the Z axis. This combination provides precise vertical movement.

Since gravity directly impacts the Z axis, the guide must have excellent holding capacity. The profile rail guide offers this stability, while also minimizing the effects of play and backlash.

7. Factors to Consider When Choosing Linear Guides for X, Y, Z Axes

7.1 Load Capacity

Each axis must handle different loads during machining. The X axis typically requires a higher load capacity since it supports both the Y and Z axes. The Y axis requires a good balance of load capacity and speed. The Z axis must maintain high precision and stability against gravitational forces.

7.2 Accuracy and Precision

Precision is key in CNC woodworking. Ball bearing guides are known for offering high levels of accuracy, making them suitable for the Y and sometimes X axes. For the Z axis, profile rail guides minimize movement errors and provide stability during vertical operations.

7.3 Speed and Smoothness

The Y axis often requires higher speed and smooth movement to keep up with complex cutting paths. Ball bearing guides excel in this context by offering low friction. For heavy-duty operations on the X axis, roller guides can provide a compromise between speed and strength.

8. Linear Guide Maintenance: Ensuring Longevity

Proper maintenance of linear guides is essential to maximize their performance and lifespan.

• Lubrication: Regular lubrication is necessary to ensure that the ball bearings or rollers do not seize up. Use high-quality lubricants suitable for woodworking environments.

• Alignment Checks: Ensuring that the guides are correctly aligned will prevent premature wear and tear.

• Cleaning: Dust and debris from woodworking can accumulate in the linear guide tracks, which can cause jamming or uneven movement.

9. Common Challenges with Linear Guides in CNC Woodworking

One of the common issues with linear guides is wear over time, especially in an environment like woodworking where dust is prevalent. Dust and debris can accumulate on the guides and cause increased friction or even binding of the guide.

Another challenge is misalignment. Misaligned guides cause uneven wear, leading to inaccuracies during machining. Regular inspections and adjustments are crucial to ensure the guide system maintains peak performance.

10. Improving Machine Efficiency with the Right Linear Guide

Choosing the right linear guides for the X, Y, and Z axes can have a significant impact on overall machine efficiency. The proper guide reduces friction and minimizes downtime, ensuring that your machine can operate at its best without frequent adjustments or maintenance.

For example, using roller guides on the X axis of an industrial CNC machine will lead to increased stability and better handling of larger workpieces, which can boost efficiency in large-scale operations. Meanwhile, ball bearing guides on the Y axis allow for smoother, more precise cuts, minimizing material wastage.

11. Comparisons: Ball Bearing Guides vs Roller Bearing Guides

Key Insight: Selecting between ball bearing and roller bearing guides often comes down to the type of movement needed—ball bearings provide superior speed, while rollers offer increased stability.

12. Applications of Linear Guides Beyond CNC Woodworking

While linear guides are essential in CNC woodworking, they also have applications in other fields like automated assembly lines, 3D printing, and robotics. Each application demands its specific type of guide depending on speed, precision, and load requirements.

For instance, in 3D printing, smooth and precise motion is needed, which makes ball bearing linear guides ideal for the X and Y axes to produce fine details. Meanwhile, in robotics, roller guides may be used to support heavy arms and ensure stability.

13. Linear Guides and Ball Screws: A Perfect Combination

Ball screws are another integral part of linear motion systems, especially in CNC applications. Combining ball screws with linear guides ensures efficient transmission of power and precise positioning.

• Efficiency: Ball screws convert rotary motion into linear motion with minimal friction losses, making them highly efficient for CNC machinery.

• Precision and Smoothness: When used with linear guides, they help in maintaining smooth and controlled motion.

Using support bearings with ball screws also adds rigidity, which is especially useful for the Z axis where high vertical loads are involved.

15. Conclusion

Selecting the best linear guide for the X, Y, and Z axes is essential for optimizing CNC woodworking machinery. Each axis has its unique needs, with profile rail guides being highly suitable for the X and Z axes due to their load capacity and rigidity, while ball bearing guides often fit the Y axis thanks to their speed and precision.With the right linear guides, your CNC machine will operate more efficiently, maintain accuracy over time, and ultimately produce higher quality work.
