AVENTICS 0821200244 Throttle Valve Homag 4-011-04-1617 Check-choke Valve

AVENTICS 0821200244 Throttle Valve Homag 4-011-04-1617 Check-choke Valve

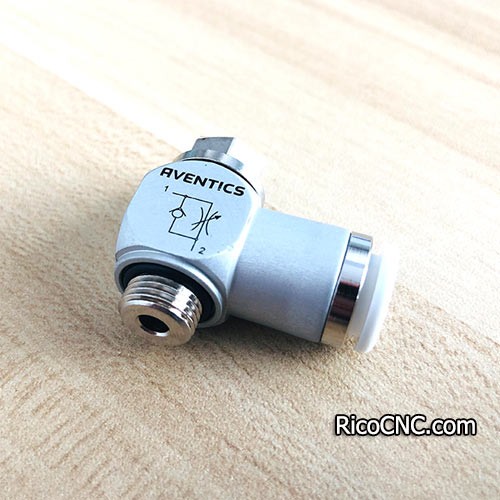

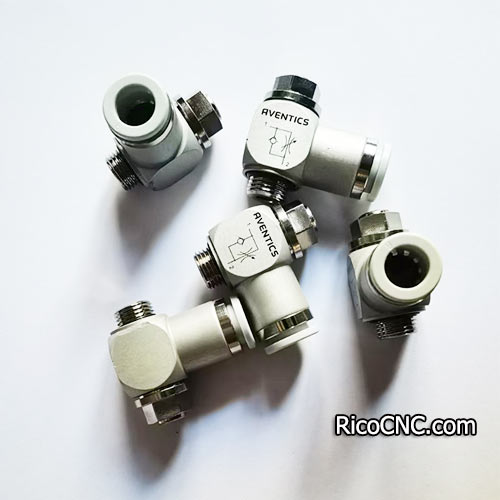

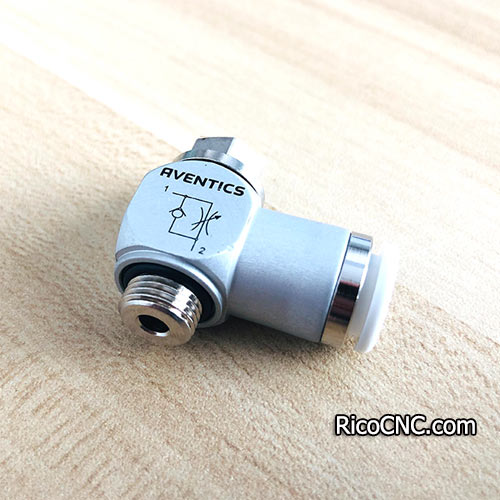

This is AVENTICS 0821200244 throttle valve used on Homag machine.

Homag part number is 4-011-04-1617 or 4011041617.

DROSSELRUECKSCHLAGVENTIL ABLUFT G1/8 D=8

Produkt ID: 4011041617

Port 1: Ø 8

Port 2: G 1/8

Throttle bore Ø: 3.5 mm

direction of throttle: 2 > 1

Nominal flow Qn 2 to 1: 360 l/min

Compressed air connection type 1: push-in fitting

Compressed air connection type 2: External thread

Throttle: Exhaust Air Throttling

Medium: Compressed air

Working pressure min.: 0.5 bar

Working pressure max: 10 bar

Min. ambient temperature: -10 °C

Max. ambient temperature: 70 °C

Min. medium temperature: -10 °C

Max. medium temperature: 70 °C

Housing material: Aluminum, anodized

Material flow control screw: Brass

Seal material: Acrylonitrile butadiene rubber

RicoCNC supplys all kinds of woodworking spare tools, like Biesse machine parts, Homag machine parts, SCM machine parts, CNC woodworking tools, edgebander machine parts, and CNC panel beam saw parts.

Welcome to contact us if any needs or inquiries.

· How to buy?

1, Contact with us ---

2, Decide the order ---

3, Make payment by (Paypal, Payoneer, Western Union, MoneyGram, T/T bank transfer) ---

4, Delivery the goods with Fedex, DHL, TNT, UPS, EMS

· When can i get the items after payment?

Leadtime within 1-3 workdays. And it takes about 3-5 workdays for delivery from China to your place.
