BOSCH Aventics 0822123005 63x125 Pneumatic Profile Cylinder for Homag Beam Saw

BOSCH Aventics 0822123005 63x125 Pneumatic Profile Cylinder for Homag Beam Saw

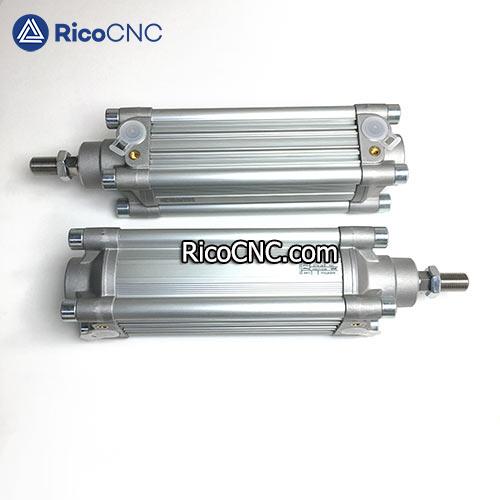

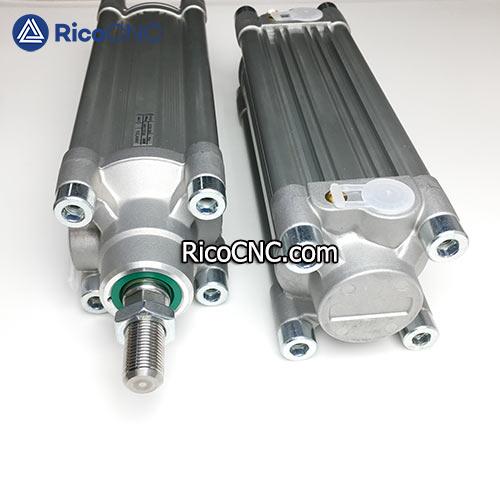

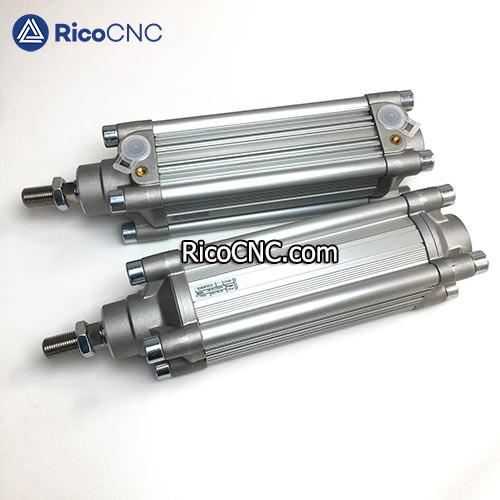

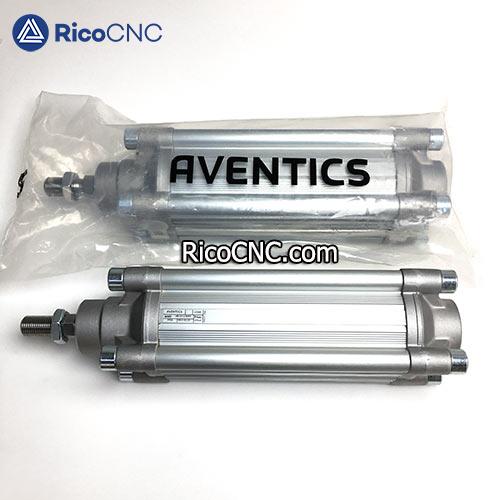

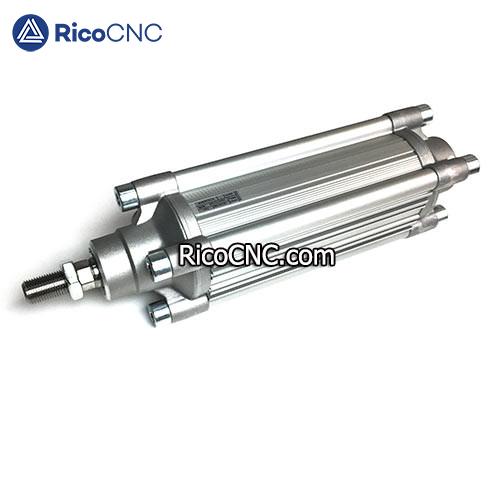

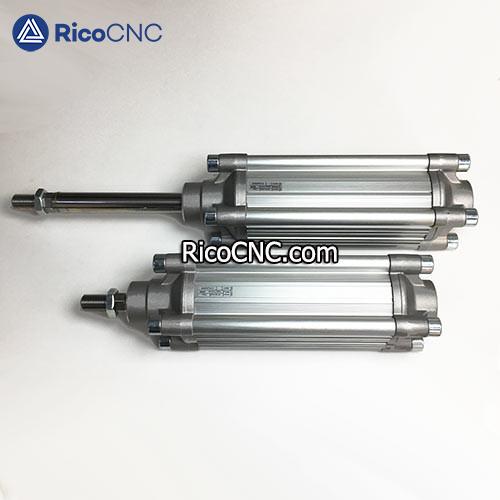

This air cylinder is Aventics 0822123005 double acting cushioned 63x125 profile cylinder with magnetic piston. It is the pneumatic cylinder for Homag HPP 180 beam saw machine. It is Ø63mm bore, 125mm stroke.

Aventics profile cylinder ISO 15552, PRA series 0822123005, PRA Seies. 63mm bore available with 25 Stroke to 500 stroke. The PRA series, with a weight-optimised profile tube, represent a consistent further development of Aventics' proven ISO cylinders with tie rods. Due to their 6 mm T-grooves and 4 mm C-grooves, a large number of sensors can be mounted easily, quickly and compactly.

Aventics 0822123005 air cylinder Features:
• 6 mm T-slots and 4 mm C-slots allow for a large number of sensors to be mounted easily, quickly and compactly.
• Available in piston diameters from 32 mm to 125 mm.
• Modular sealing system allows for adaptability.
• Advanced pneumatic end position cushioning.
• Additional elastic damping elements.
• Wide range of variants and accessories available in the configurator.

BOSCH AVENTICS Pneumatic Cylinder 0822123005 Specification:

Part number: 0822353005

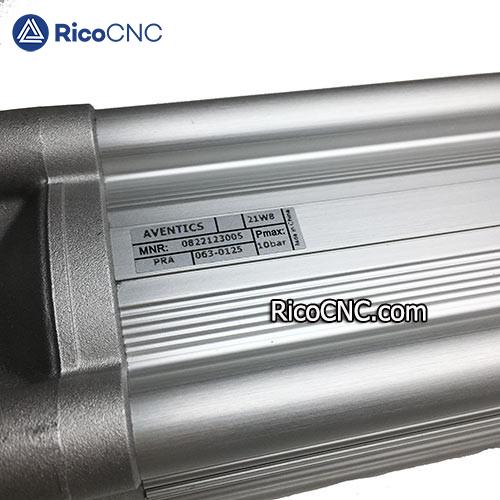

Model Code: PRA-DA-063-0125-0-2-2-1-1-1-BAS

Piston Diameter: Ø 63 mm
Stroke: 125mm Stroke

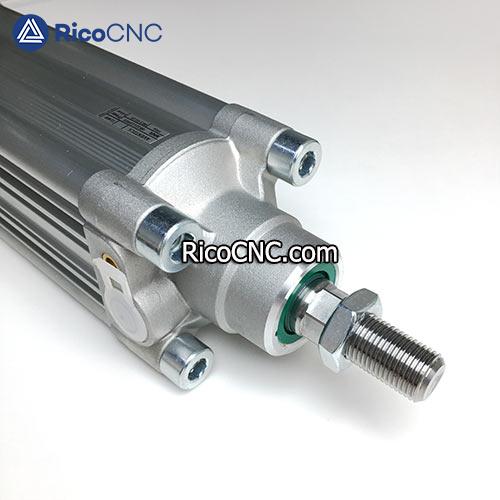

Piston Rod Thread: M16 x 1.25
Ports: G 3/8
Double-acting
With magnetic piston
ISO: ISO 15552
Cushioning: Pneumatically adjustable
Piston Rod External thread
Compressed Air Connection: Internal Thread
Sealing: Polyurethane
ATEX optional
Media: Compressed Air
Please note that Aventics cylinders must be ordered based on the 10-digit item number matching your requirement.

Modular Sealing System:
In addition to numerous design highlights, the Aventics PRA series scraper modules offer the greatest adaptability to all requirements – whether dealing with loose dirt, grinding and welding residues, or chemicals. You decide which scraper is best for your application and industry. Thanks to the system’s modularity, you can change the scraper on the cylinder at any time and considerably decrease service intervals, keeping your options open. Configurable modular scrapers.

RicoCNC can also offer other models of AVENTICS pneumatic cylinder such as:
0822123001
0822123002
0822123003
0822123004
0822123005
0822123006
0822123007
0822123008
0822123009
0822123010
0822123011
Festo Norgen PNEUMAX air cylinder are also available here.

Welcome to contact us if any inquires for woodworking machine spare parts!

· How to buy?

1, Contact with us ---

2, Decide the order ---

3, Make payment by (Paypal, Payoneer, Western Union, MoneyGram, T/T bank transfer) ---

4, Delivery the goods with Fedex, DHL, TNT, UPS, EMS

· When can i get the items after payment?

Leadtime within 1-3 workdays. And it takes about 3-5 workdays for delivery from China to your place.
