Ball Nose Conical Solid Carbide Spiral 2D 3D Carving Bits

Conical ballnose router bits
Tapered ball nose spiral router bit
Ball nose end mills
Tapered end mill
Up-cut tapered router bits
CNC bits for 3d 2d carving
conical tapered spiral router bits
Spiral tapered ball nose bits

Spiral 2D 3D Carving Bits

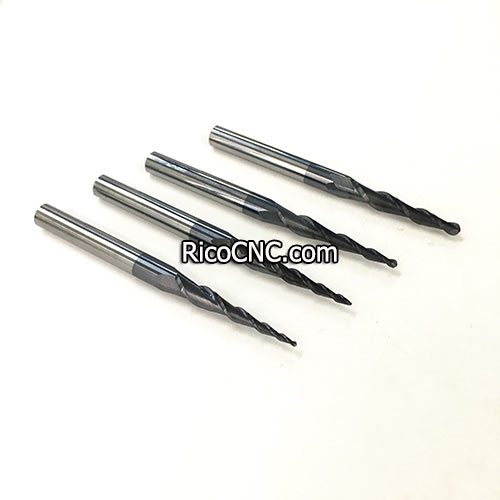

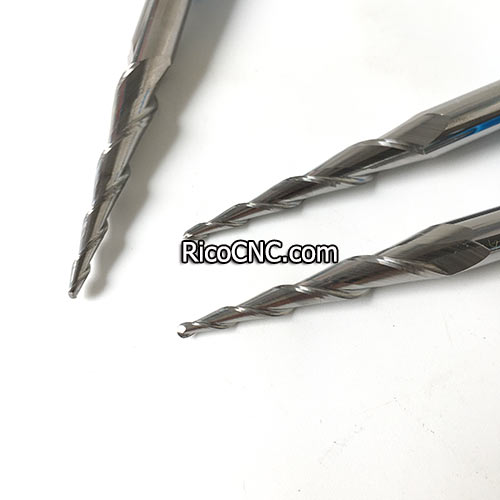

Ball Nose Conical Solid Carbide Spiral 2D 3D Carving Bits for Wood Carving

These 2 flutes tapered angle ball nose end mill cone router bits for smooth engraving and clear the edge, for woodworking.

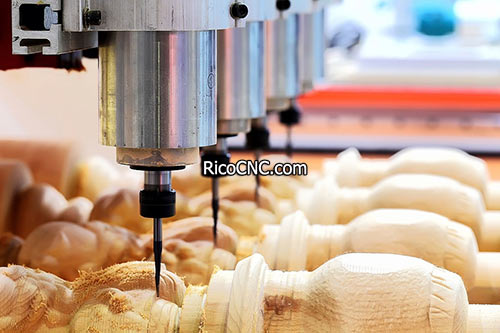

Conical Ball nose bits are best for CNC router engraver machine, hand router trimmer, 3D carving for Plywood, Hardwood, plastic, MDF, Carbon steel, Inconel, stainless steel, etc.

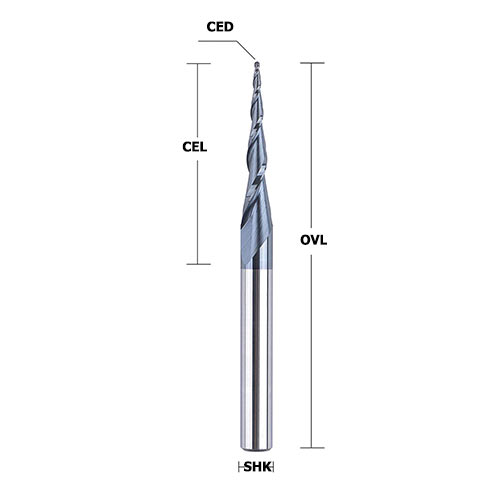

router bits size

Conical ballnose router bits:

Item No.	CED(mm)	CEL(mm)	SHK(mm)	OVL(mm)
X2QX42010	1	20	4	50
X2QX62010	1	20	6	50
X2QX63010-60	1	30	6	60
X2QX63020-60	2	30	6	60
X2QX63010-70	1	30	6	70
X2QX63015-70	1.5	30	6	70
X2QX63020-70	2	30	6	70
X2QX63030	3	30	6	70
X2QX64010	1	40	6	80
X2QX64020	2	40	6	80
X2QX64030	3	40	6	80
X2QX83010	1	30	8	75
X2QX83020	2	30	8	75
X2QX83030	3	30	8	75
X2QX84010	1	40	8	85
X2QX84020	2	40	8	85
X2QX84030	3	40	8	85
X2QX86020	2	60	8	110
X2QX103520	2	35	10	80
X2QX103530	3	35	10	80
X2QX103540	4	35	10	80
X2QX104530	3	45	10	90
X2QX104540	4	45	10	90
X2QX125020	2	50	12	100
X2QX125030	3	50	12	100
X2QX126030	3	60	12	120
X2QX1210020	2	100	12	150
