Homag 4035010060 4-035-01-0060 Aventics 0822034202 Pneumatic Cylinder

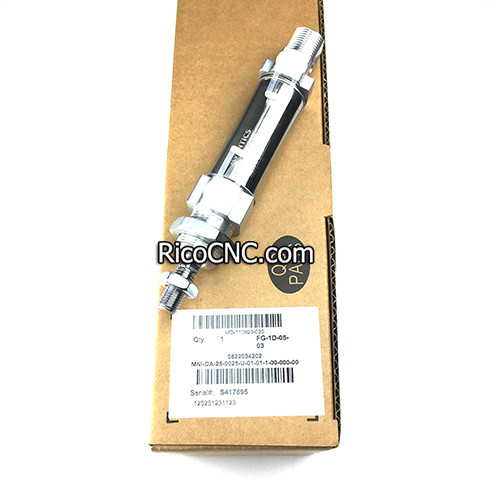

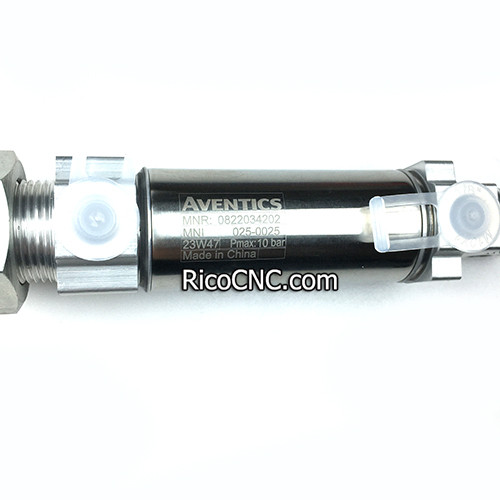

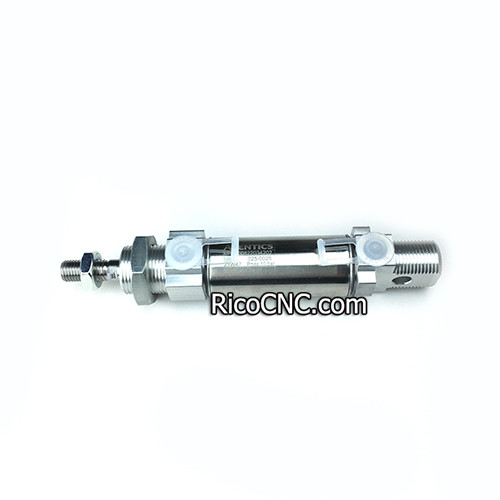

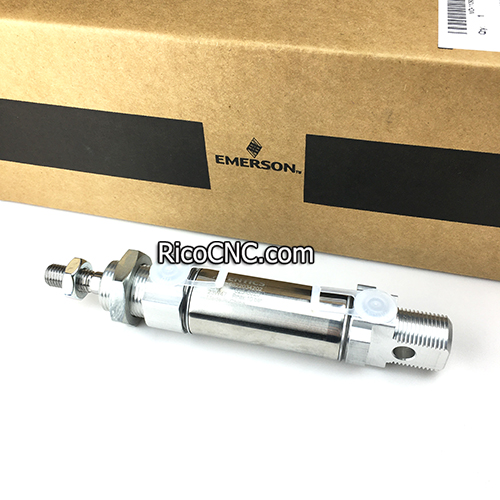

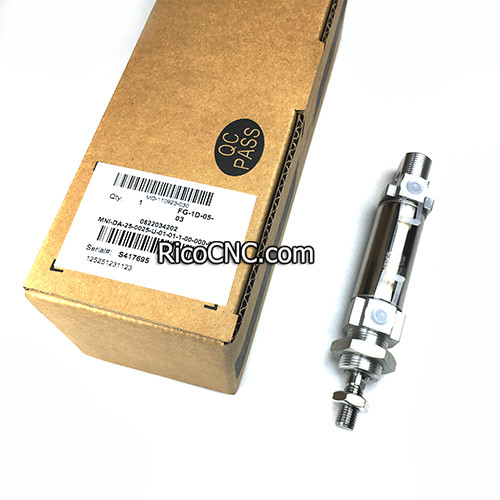

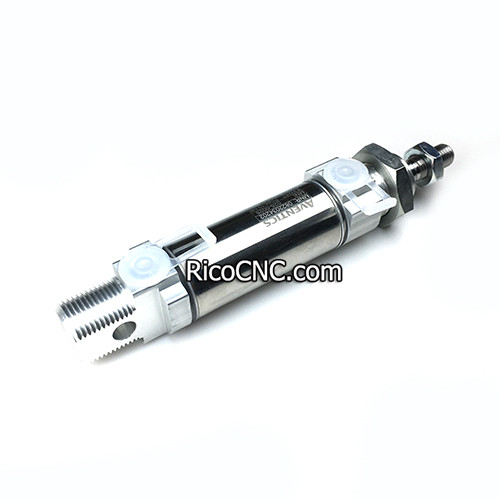

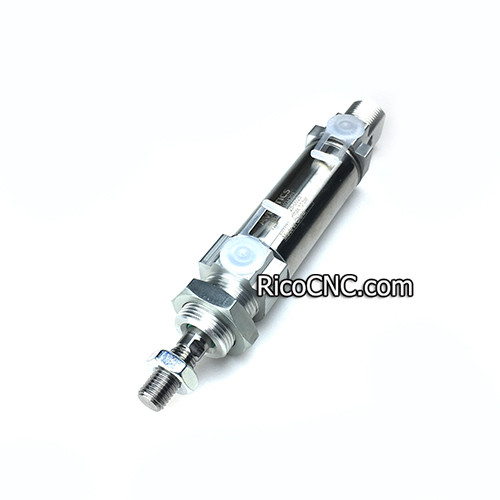

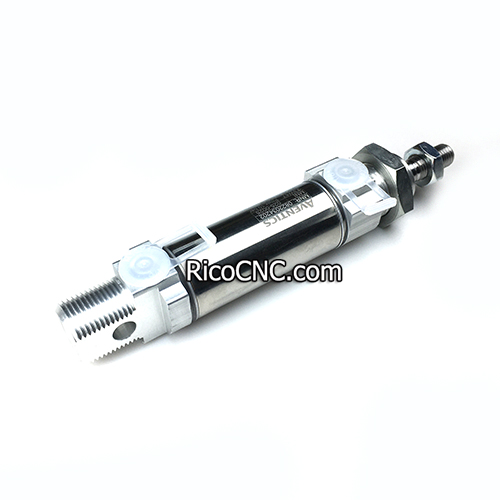

This is Aventics 0822034202 Pneumatic Cylinder MNI-DA-25-0025-U-01-01-1-00-000-00,Mini Metric Cylinder, ISO 6432, Double Acting, 25mm Bore, 25mm Stroke, Elastic Bumpers, Non-Magnetic Piston, Single Rod, Polyurethane Seals, Standard Rod Length
It can be used on Homag woodworking machines. Homag replacement part number is 4035010060 or 4-035-01-0060.
Specification of Aventics 0822034202 Pneumatic Cylinder:
Brand | Aventics |
Model | 0822034202 |
Standards | ISO 6432 |
Homag part number | 4035010060 4-035-01-0060 |
Piston Ø | 25 mm |
Stroke | 25 mm |
Functional principle | Double-acting |
Stroke max. | 1300 mm |
Medium | Compressed air |
Cushioning | Elastic cushioning |
Magnetic piston | Piston without magnet |
Environmental requirements | Industry standard, ATEX optional |
Certificates | ATEX optional |
Piston rod | single |
Scraper | Standard industrial scraper |
Pressure for determining piston forces | 6.3 bar |
Piston rod thread | M10x1.25 |
Weight | 0.2655 kg |
RicoCNC can offer a range of Homag replacement parts, including cylinders, sensors, motors, etc.
