Homag 4035012297 FESTO 35193 ISO cylinder DSNU-25-400-PPV-A
This

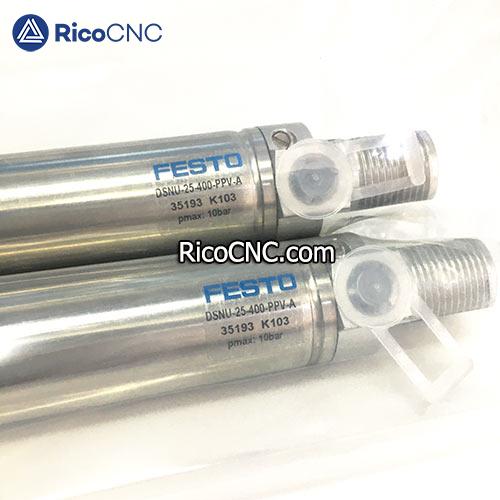

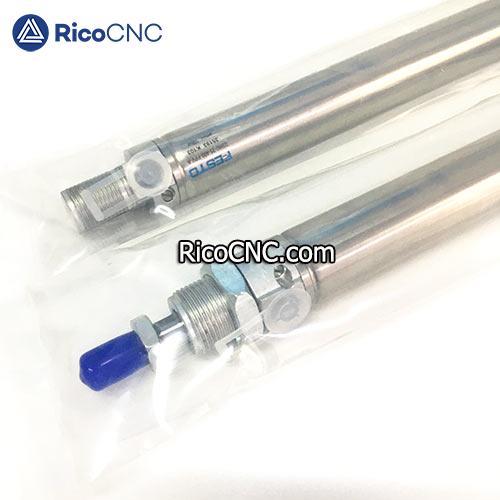

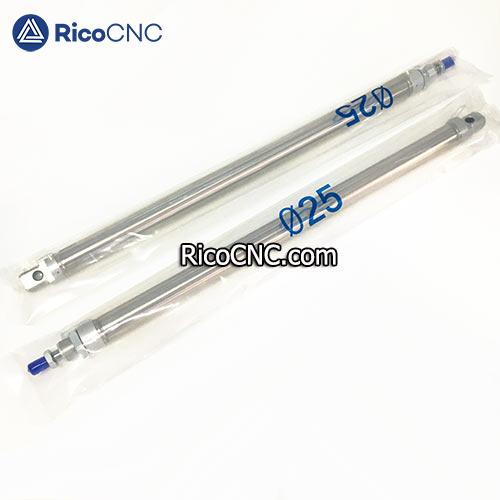

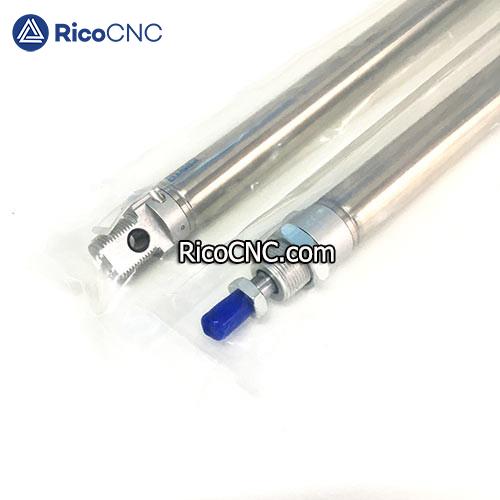

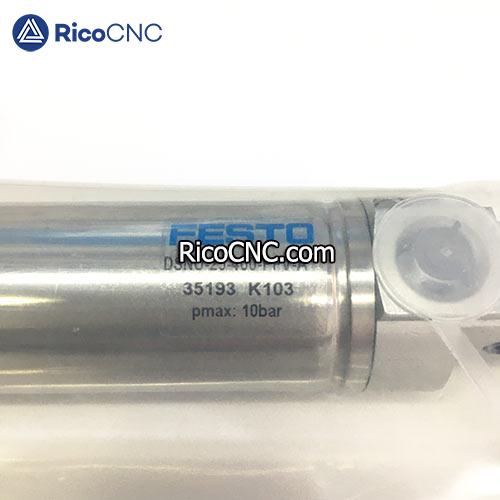

cyliner is Festo ISO cylinder DSNU-25-400-PPV-A. It is the replacement of Aventics
0822234011 mini cylinder, Homag 4-035-01-2297 / 4035012297 pneumatics
cylinder for Ambition 1650 edgebander trimming unit.
Festo 35193 DSNU-25-400-PPV-A air cylinder is based on DIN ISO 6432, same as 0822234011
Aventics pneumatic cylinder MNI-DA-25-0400-D-01-01-1-00-000-00, for
proximity sensing. Various mounting options, with or without additional
mounting components. With adjustable end-position cushioning.
Features of Festo DSNU-25-400-PPV-A double acting pneumatic cylinder:
• Stainless steel piston rod
• Good running performance and long service life
• Piston rod with male and female thread
• Extensive range of accessories makes it possible to install the cylinder virtually anywhere
• The drive has adjustable end-position cushioning
• Medium to high loads
• High speeds
• High impact energies
• Very powerful
Data sheet for ISO cylinder
DSNU-25-400-PPV-A
Feature | Value |
Stroke | 400 mm |
Piston diameter | 25 mm |
Piston rod thread | M10x1.25 |
Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any |
Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread |
Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor |
Symbol | 00991235 |
Variants | Piston rod at one end |
Operating pressure | 0.1 MPa ... 1 MPa |
Operating pressure | 1 bar ... 10 bar |
Mode of operation | Double-acting |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20 °C ... 80 °C |
Impact energy in the end positions | 0.3 J |
Cushioning length | 17 mm |
Theoretical force at 6 bar, retracting | 247.4 N |
Theoretical force at 6 bar, advancing | 294.5 N |
Moving mass at 0 mm stroke | 71 g |
Additional moving mass per 10 mm stroke | 6g |
Basic weight with 0 mm stroke | 238 g |
Additional weight per 10 mm stroke | 11 g |
Type of mounting | With accessories |
Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel |
