MCQ12-11-50-50 Mindman Pneumatic Cylinder Nanxing 60101.00007 30100150

MCQ12-11-50-50 Mindman Pneumatic Cylinder Nanxing 60101.00007 30100150

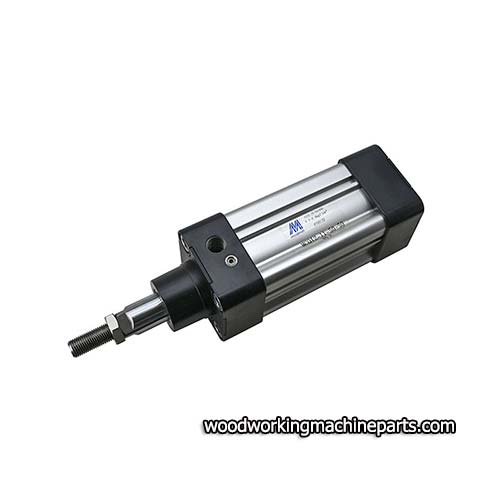

This is brand new MCQ12-11-50-50 Mindman pneumatic cylinder Nanxing 60101.00007 30100150 cylinder used on Nanxing machinery.

MCQ12-11-50-50 Cylinder Specifications

Operating Pressure Range: 0.05 - 1 mpa

Proof Pressure: 1.5 mpa

Operating Temperature Range: -5 + 60 Celcius

Compatible Speed Range: 50-500mm/sec

 Sensor Switch: RCI

Cylinder Tube Material: Anodised Aluminium

Piston Rod Material: Carbon Steel

Seals Material: NBR

MCQI2-11-50-50M Features

•Self-Lubrication: With the MCQI2 series from Mindman, there is no need for lubrication. The special housing and bushing allows the self lubrication of the piston road

•Hard Anodised Aluminium Chasis: There is high corrision resistance and low intenral friction such that the piston and road have long life cycles.

•ISO-VDMA Standard: the cylinder coforms to ISO-6431 and VDMA 24562 specification allow for modularity and ease of replacement.

•Magnetic Switch: The chasis has four grooves allowing for easy insertion of magnetic reed switches that can be mounted in a variety of positions.

RicoCNC supplys all kinds of woodworking spare tools, like Biesse machine parts, Homag machine parts, SCM machine parts, CNC woodworking tools, edgebander machine parts, and CNC panel beam saw parts.

Welcome to contact us if any needs or inquiries.
