Rubber Pressure Wheels for Wood Edgebander Edge Banding Machinery

Rubber Pressure Wheels for Wood Edgebander Edge Banding Machinery

• Edgebanding machine pressure rollers
• Edge bander pressure wheels
• Rubber pressure roller for Biesse
• Pressure wheels with coutersink
• Pressure rollers with bearing
• Heat-resistant rubber wheels
• Pressure wheels for Brandt
• Pressure rollers for Akron

Rubber Pressure Wheels for Wood Edgebander Edge Banding Machinery

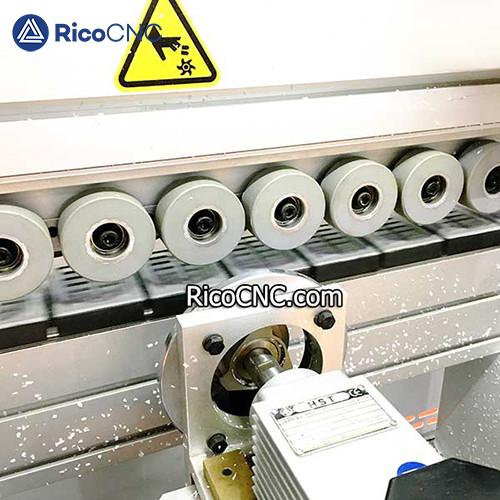

Pressure Wheels for Wood Edgebander.jpg

This rubber wheel is a very important part of the edgebanding machine. It is an edge conveyor wheels, also called pressure roller. It is used to press the workpiece, work with conveyor chain pad to get edge banded.

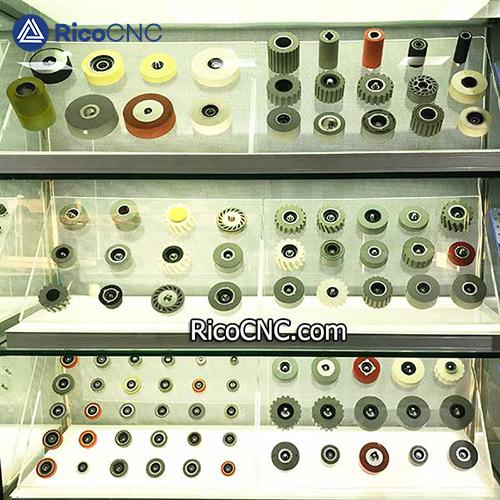

edgebanding rubber wheels.jpg

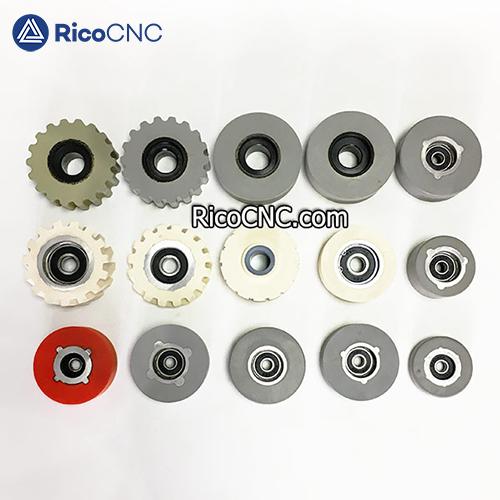

Different edgebander manufacturers have edge band rubber wheels in different sizes and shapes.

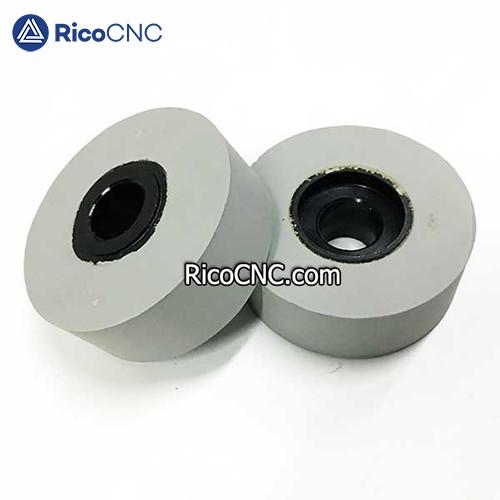

Mainly there are smooth roller with bearing, gear wheel with bearing, flat roller with/ without countersink, gear roller with/ without countersink.
Gear type also have 2 kinds, straight tracking and angle tracking

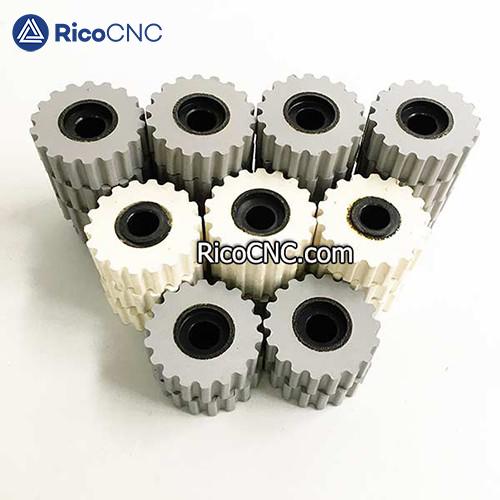

gear rubber wheel for edger bander.jpg

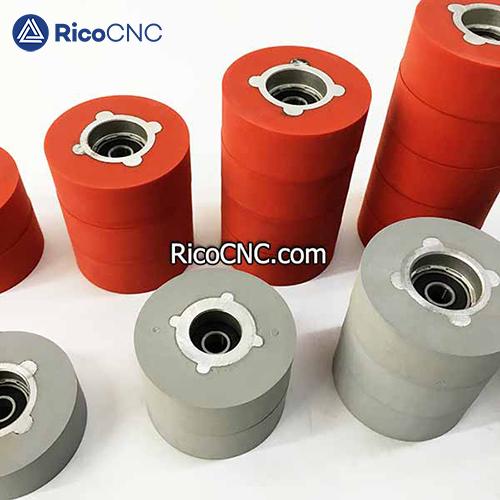

pressure wheels with bearing.jpg

Also work in a different area, there are normal pressure wheels and heat-resistant pressure wheels in high-temperature hot area.

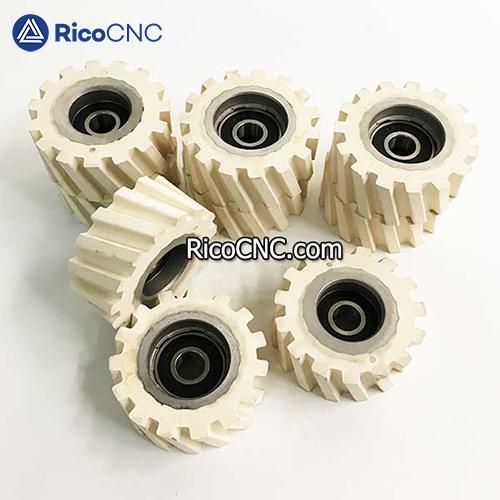

Biesse heat resistant pressure wheels.jpg

Rubberized Pressure Wheels Dimensions:

Inner dia. 8mm

Inner dia. 10mm

Inner dia. 12mm

Other inner dia.

75*8*13.5mm, 67*8*27mm, 67*8*25mm, 65*8*30mm, 65*8*28mm, 65*8*25mm, 65*8*14mm, 60*8*24mm, 60*8*23mm, 60*8*20mm, 60*8*14mm, 58*8*23mm, 55*8*30mm, 55*8*23mm, 55*8*13.5mm, 54*8*40mm, 54*8*32mm, 54*8*30mm, 54*8*28mm, 48*8*25mm, 48*8*12mm, 40*8*30mm, 34*8*15mm

70*10*20mm, 70*10*18mm, 65*10*28mm, 65*10*14mm,

65*12*28mm, 65*12*14mm, 60*12*20mm, 58*12*32mm, 58*12*28mm, 58*12*16mm, 55*12*25mm, 54*12*32mm,

70*20*25mm, 70*18*25mm, 62*16*24mm, 82*17*23mm, 82*20*23mm, 78*17*38mm, 60*30*22.5mm, 100*24*28mm, 106*15*25mm,

etc

If the size you need not listed, welcome to contact us directly.
Rubberized Pressure Wheels for edge bander.jpg

RicoCNC is a reliable edgebanding machine spare parts supplier for most edge bander manufacturers such as Biesse Roxyl, Biesse Akron, Homag, SCM, IMA, Brandt, Holz-her, Casadei Busellato, Felder, Laguna Bandit, CEHISA, IDM, Fravol, IDIMATIC, LIGA, KDT, Naixing, Huali, Hold and other Chinese edgebanders, etc.

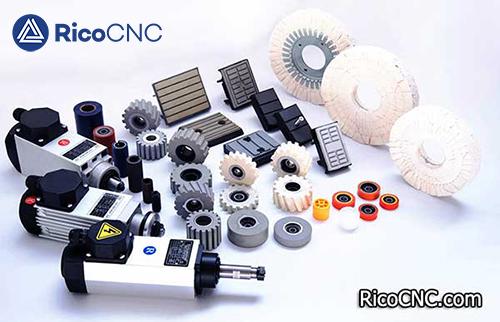

spare parts for edgebanding machine.jpg
