Brad point boring bits
Carbide brad point drill bits for wood
Solid carbide brad point drill bits
Wood brad boring drill bits
Carbide brad point drill bits
Long brad point drill bits
Brad point drill bits for woodworking
Blind holes flat boring bits

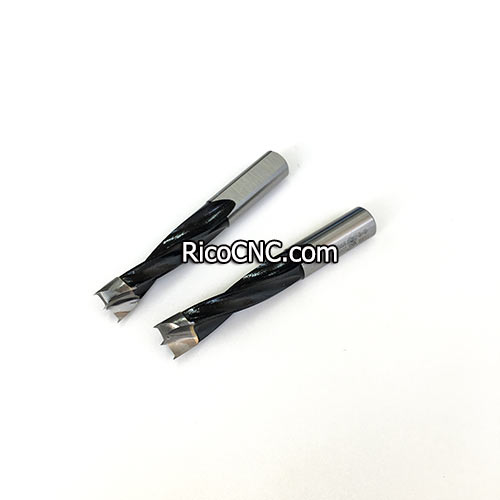

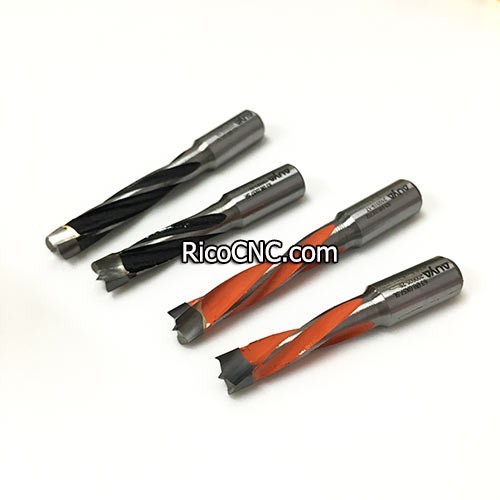

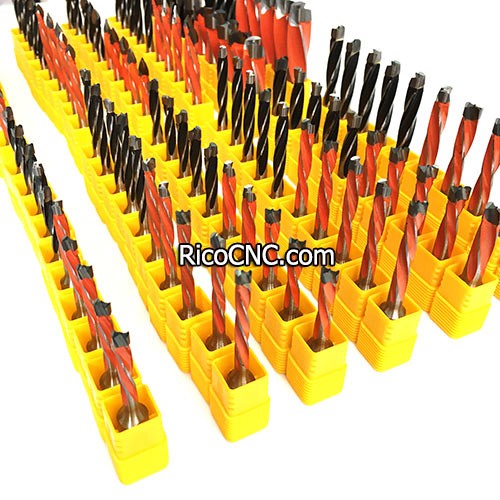

Solid Carbide Tipped Brad Point Drill Bits for Wood Dowel Boring
The brad point drill is designed to cut blind holes and produce a clean edge on the top surface.

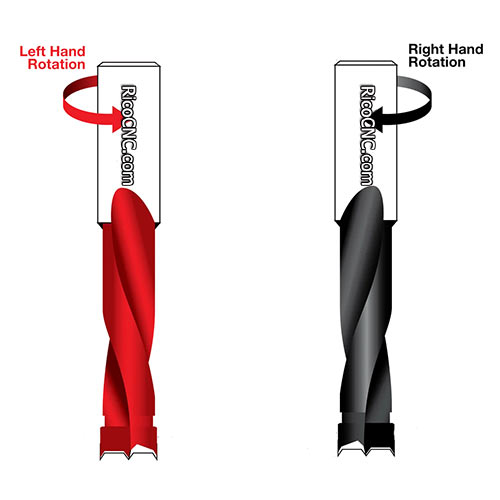

There are sizes of left hand right hand through hole bore bits and have 57mm and 70mm long for choose:
<td width="132" valign="bottom" nowrap="" he
Item No. | Direction | Drill Dia.(mm) | Blade Length (mm) | Overall Length (mm) | Shank Dia. (mm) |
3*57L | Left Hand | 3 | 21.5 | 57.5 | 10 |
3*57R | Right Hand | 3 | 21.5 | 57.5 | 10 |
4*57L | Left Hand | 4 | 28.5 | 57.5 | 10 |
4*57R | Right Hand | 4 | 28.5 | 57.5 | 10 |
5*57L | Left Hand | 5 | 28.5 | 57.5 | 10 |
5*57R | Right Hand | 5 | 28.5 | 57.5 | 10 |
5.5*57L | Left Hand | 5.5 | 28.5 | 57.5 | 10 |
5.5*57R | Right Hand | 5.5 | 28.5 | 57.5 | 10 |
6*57L | Left Hand | 6 | 28.5 | 57.5 | 10 |
6*57R | Right Hand | 6 | 28.5 | 57.5 | 10 |
6.2*57L | Left Hand | 6.2 | 28.5 | 57.5 | 10 |
6.2*57R | Right Hand | 6.2 | 28.5 | 57.5 | 10 |
6.5*57L | Left Hand | 6.5 | 28.5 | 57.5 | 10 |
6.5*57R | Right Hand | 6.5 | 28.5 | 57.5 | 10 |
7*57L | Left Hand | 7 | 28.5 | 57.5 | 10 |
7*57R | Right Hand | 7 | 28.5 | 57.5 | 10 |
7.5*57L | Left Hand | 7.5 | 28.5 | 57.5 | 10 |
7.5*57R | Right Hand | 7.5 | 28.5 | 57.5 | 10 |
8*57L | Left Hand | 8 | 28.5 | 57.5 | 10 |
8*57R | Right Hand | 8 | 28.5 | 57.5 | 10 |
8.2*57L | Left Hand | 8.2 | 28.5 | 57.5 | 10 |
8.2*57R | Right Hand | 8.2 | 28.5 | 57.5 | 10 |
8.5*57L | Left Hand | 8.5 | 28.5 | 57.5 | 10 |
8.5*57R | Right Hand | 8.5 | 28.5 | 57.5 | 10 |
9*57L | Left Hand | 9 | PREVIOUS：Left and Right Hand Carbide Tip V-Point Wood Drilling and Boring BitsNEXT：Hinge Boring Drill Bits for Cabinet Door Hinge HolesINQUIRYRELATED PRODUCTSCATEGORIES
