Homag 4006102276 Weeke 4-006-10-2276 Linear Guide Carriage For Weeke BHC Venture

Homag 4006102276 Weeke 4-006-10-2276 Linear Guide Carriage For Weeke BHC Venture

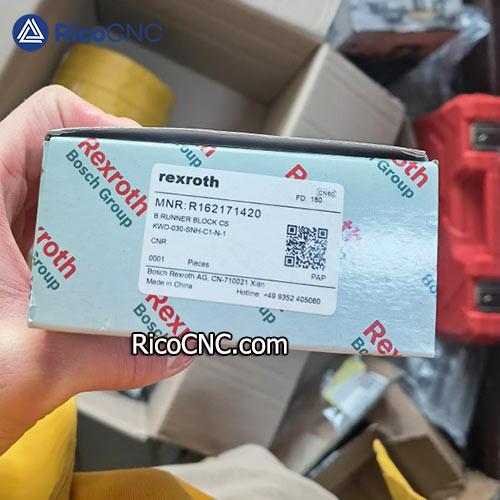

• Rexroth R162171420 KWD-030-SNH-C1-N-1
• X-axis linear bearing R162171420
• Weeke 4006102276 linear bearing
• Rexroth R162171420 Linear Carriages
• R162171420 BOSCH REXROTH linear guide
• Rexroth Ball runner block KWD-030-SNH-C1-N-1
• Homag 4006102276 guide carriage SIZE 30 1621-714-20
• R162171420 Ball Runner Block
• Bosch Rexroth linear guide block R162171420

Homag 4006102276 Weeke 4-006-10-2276 Linear Guide Carriage For Weeke BHC/Venture

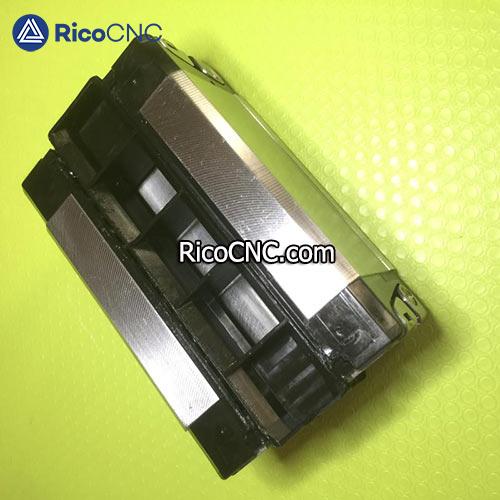

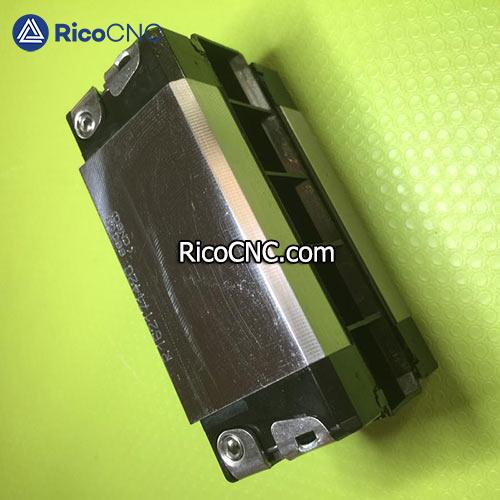

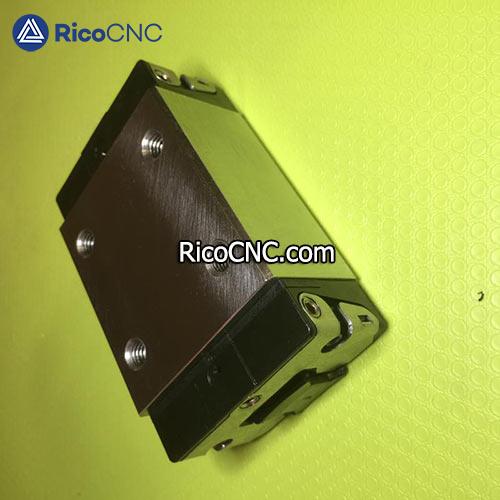

Thislinear guide block is Bosch Rexroth R162171420, Size 30, Ball runner block CS, made of Carbon steel, Accuracy High, Low Preload Linear guider.
Always used in PTP160 Machining Center for Homag Weeke, part number is 4-006-10-2276/4006102276.

Weeke 4006102276 linear guide carriage features:
• Area of application: For restricted space in transverse direction and high rigidity requirements
• Low noise level and outstanding travel behavior
• Higher rigidity than SNS
• Long-term lubrication is possible over several years
• Excellent dynamic characteristics
• Used in PTP160 machining center for Homag

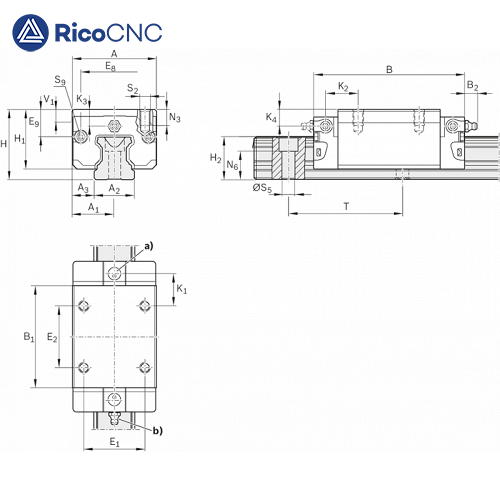

Rexroth linear guide carriage R162171420 .png

Additioal Information of Rexroth R162171420 linear bearing:

Weight [kg]	0.991
Size [mm]	30
A [mm]	60
H [mm]	45
B [mm]	97.7
E1 [mm]	40
E2 [mm]	40
Preload class	C1 - moderate preload
Accuracy class	N - normal
Seal type	SS - standard seal, Without ball chain
B1 [mm]	67.4
H1 [mm]	38.35
S2	M8
T [mm]	80
A2 [mm]	28
H2 [mm]	28.35
N6 [mm]	17
S5 [mm]	9
Load capacity C [N]	36500
Load capacity C0 [N]	48100
Load moment Mt [Nm]	630
Load moment Mt0 [Nm]	830
Load moment ML [Nm]	440
Load moment ML0 [Nm]	580
Brand	Bosch-Rexroth

RicoCNC supplies a range of linear bearing and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.
