Homag 4075011014 4-075-01-1014 Servo Motor For CNC Machining Center

Homag 4075011014 4-075-01-1014 Servo Motor For CNC Machining Center

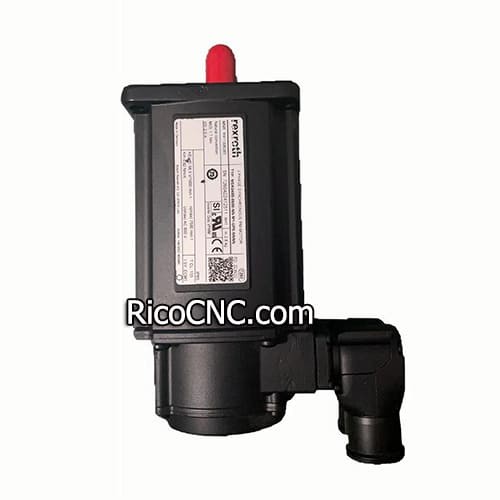

This is Bosch Rexroth R911306385 synchronous servo motor. The type code is MSK040B-0600-NN-M1-UP0-NNNN. It can be used

at the Homag CNC machining center. Homag part number is 4075011014 or 4-075-01-1014.

The MSK040B-0600-NN-M1-UP0-NNNN is a robust and versatile synchronous servo motor from Bosch Rexroth Indramat.

The motor has a maximum speed of 7500 rpm. The leakage capacitance of the unit is 1.5 nF. Its maximum rated torque is 5.1 Nm.

Description of Rexroth R911306385 servo motor:

Part number:  Bosch Rexroth MSK Synchronous Motor

Rexroth model number: R911306385

Homag part number: 4-075-01-1014 4075011014

Type code: MSK040B-0600-NN-M1-UP0-NNNN

Continuous Torque: 1.7 Nm

Continuous Current: 2.0A

Maximum Torque: 5.5 Nm

Maximum Speed: 7,500 RPM

Design: 4 Poles

Operating Temperature Range: 0oC-40oC

Protection Degree: IP65

Encoder Type: HiperFace Optical Encoder

Encoder Increments: 128

Max Encoder Revolutions: 4096

Driveshaft Design: DIN 6885-1 Keyway with Shaft Sealing Ring.

A wide range of spare parts for Homag woodworking machines is available, including Weeke CNC machine parts, spare parts for

CNC machining center, Holzma beam saw parts, and Brandt edge bander parts.
